8-Axle hydrau­lically
steered semi low loader

Proven quality for heavy work

Looking for an 8 axle semi low loader?

The 8-axle single extendable semi low loader can transport extreme lengths with relative ease. In combination with the hydraulic steering, the trailer is highly manoeuvrable.

Ask us
your question!

Contact OptionsContact Options Questions

Determine
your target price

ConfigureConfigure Configure

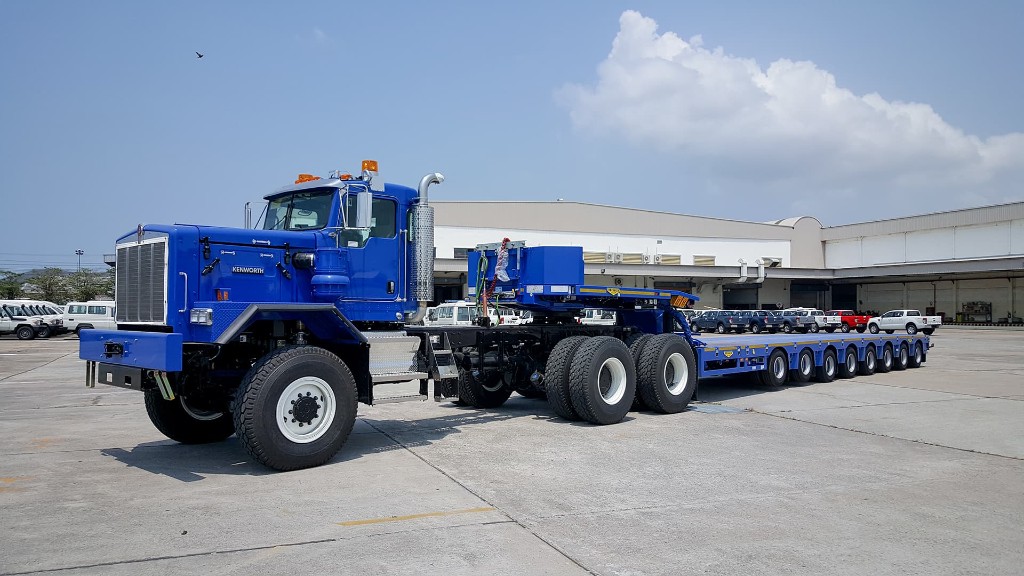

8-Axle semi low loader single extendable

This 8 axle single extendable hydraulically steered semi low-loader can reach a total trailer length of almost 28 meters. This makes it possible to transport extreme lengths with relative ease. This trailer is equipped with hydraulic steering and suspension. This makes the semi-trailer not only highly-manoeuvrable, but also very stable. In addition, the trailer is equipped with a hydraulically-movable gooseneck, to compensate for the height difference in the road surface. Thanks to the adjustable conical bearings in the steering system, our semi low-loaders require less maintenance.


General
specifications

  • 1x extendable
  • Hydr. suspension hydr. steered
  • 245/70 R17.5 tyres
  • Movable neck
  • Load capacity app. 85 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 80 t
  • Tare weight ca.23.5 t
  • Platform height 990 mm
  • Extension 10,000 mm
  • Total extended lenght 27,730 mm
Specification sheet

Related
products

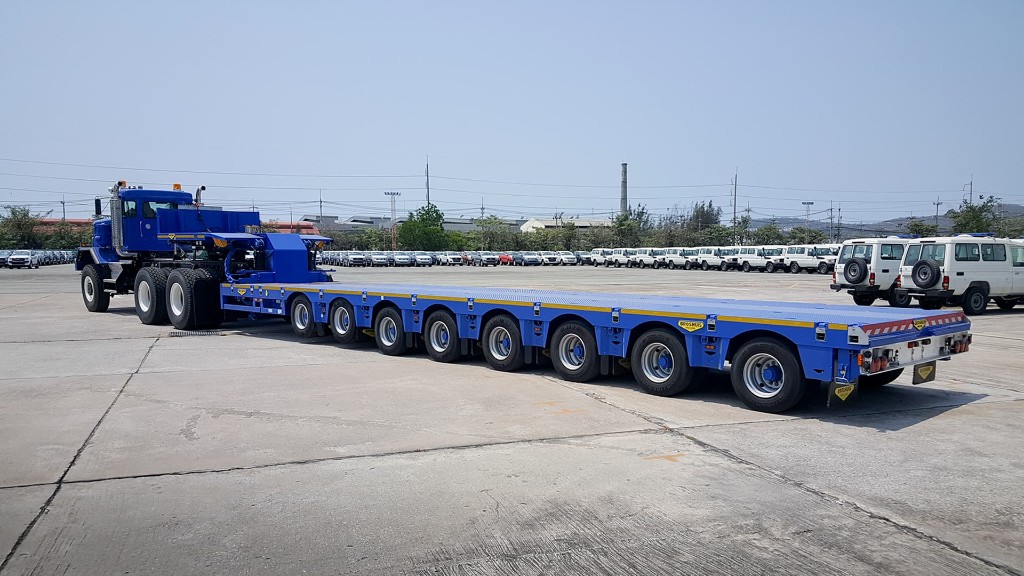

8-axle tower semi low loader double extender
