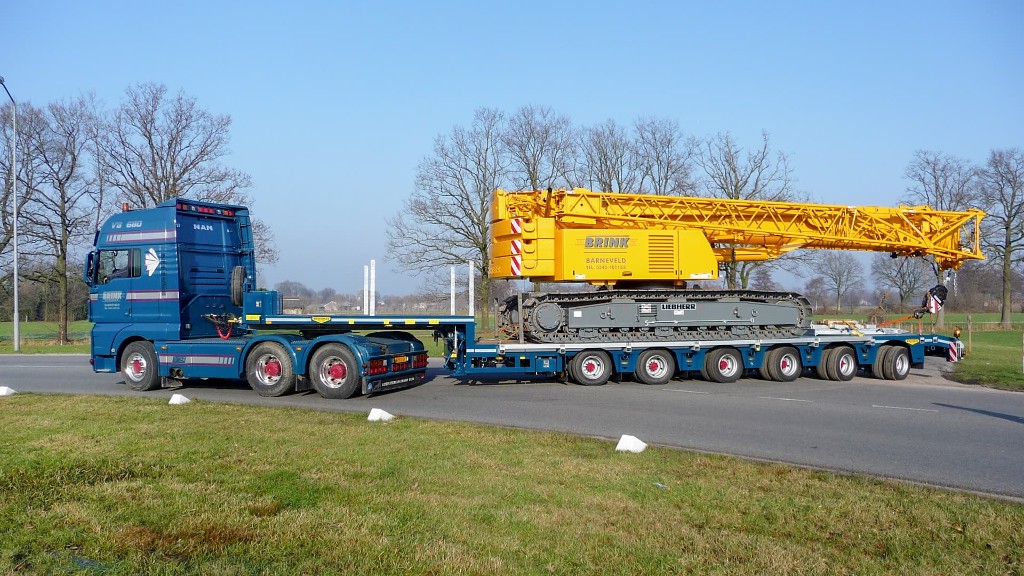

6-axle hydrau­lically steered
semi low loader double extender

Extends to approximately 18 metres.

Looking for a double extendable semi?

The 6-axle double extender semi low loader can easily transport extremely long loads. In combination with the hydraulic steering, the trailer remains highly manoeuvrable.

Ask us
your question!

Determine
your target price

General
specifications

  • 2x extendable
  • Hydr. suspension hydr. steered
  • 245/70 R17.5 tyres
  • Movable neck
  • Load capacity app. 65 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 60 t
  • Tare weight ca.23.3 t
  • Platform height 965 mm
  • Extension 17,800 mm
  • Total extended lenght 32,995 mm
Specification sheet
