7-axle hydrau­lically steered
semi low loader double extender

Robust semi trailer for heavy loads

Looking for a double extendable semi?

The 7-axle double extender semi low loader can transport long loads with ease. In combination with the hydraulic steering, the trailer remains highly manoeuvrable.

Ask us
your question!

Contact OptionsContact Options Questions

Determine
your target price

ConfigureConfigure Configure

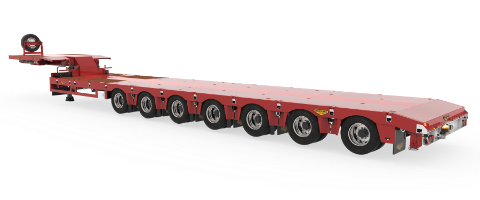

7-axle semi low loader hydraulically steered double extendable

Our 7-axle semi low loader is the perfect trailer for loads of up to 70 tons. Thanks to the robust chassis, the best anti-corrosion treatment and the maintenance-free steering system, you are assured of one of the strongest trailers of its kind. Quality and safety are very important to us and we have prioritised these aspects in the design of our 7-axle semi low loader.

The double-extender hydraulically steered semi low-loader can reach a total trailer length of approximately 38 meters. This makes it possible to easily transport extremely long loads. This trailer is equipped with hydraulic steering and suspension. This makes it very stable and manoeuvrable. In addition, the trailer is equipped with a hydraulic gooseneck to compensate for the height difference in the road surface. Thanks to the adjustable conical bearings in the steering system, our semi low loaders require less maintenance.

General
specifications

  • 2x extendable
  • Hydr. suspension hydr. steered
  • 245/70 R17.5 tyres
  • Movable neck
  • Loadcapacity app. 75 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 70 t
  • Tare weight ca.27 t
  • Platform height 990 mm
  • Extension 20,600 mm
  • Total extended lenght 38,230 mm
Specification sheet

Related
products

6-axle semi low loader double extender

This 6-axle hydraulically steered semi low loader is double extendable. This allows the trailer to reach a length of approximately 33 meters. Due to the hydraulic steering, the trailer remains highly manoeuvrable.

8-Axle semi low loader

This 8-axle hydraulically-steered semi low loader extends once. This allows the trailer to reach a length of approximately 28 meters. Thanks to the hydraulic steering, the trailer is highly manoeuvrable.

8-axle tower semi low loader double extender

This 8-axle hydraulically-steered semi low-loader is specially designed for the transport of wind turbine components. By extending the trailer, a tower slot is created, so that the transport height can be reduced.
