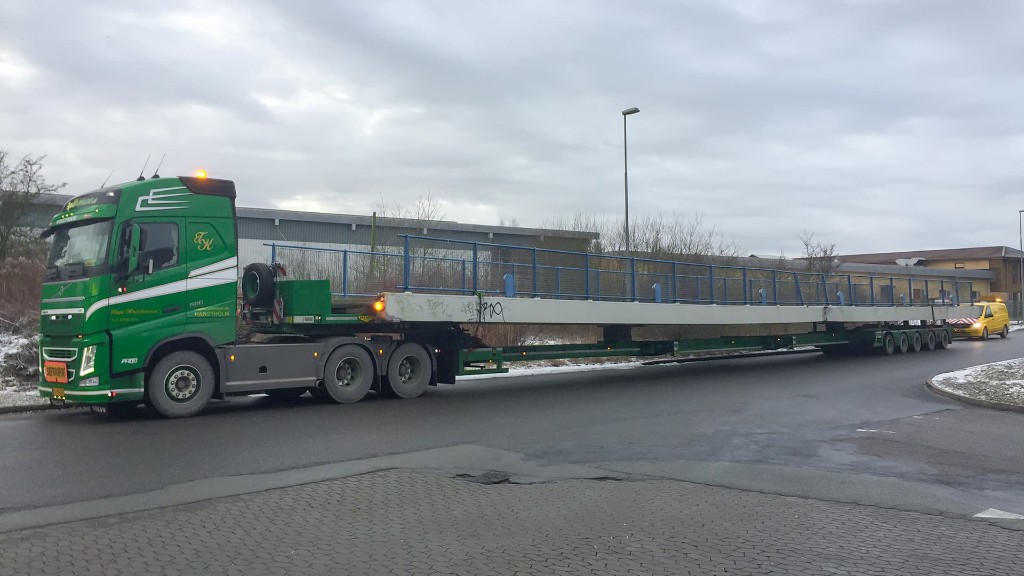

5-axle hydrau­lically steered
semi low loader triple extender

Extends to approximately 25 metres

Looking for a triple extendable semi?

The 5-axle triple-extender semi low loader can easily transport extremely long loads. In combination with the hydraulic steering, the trailer is highly manoeuvrable.

Ask us
your question!

Determine
your target price

General
specifications

  • 3x extendable
  • Hydr. suspension hydr. steered
  • 245/70 R17.5 tyres
  • Movable neck
  • Load capacity app. 55 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 50 t
  • Tare weight ca.26.7 t
  • Platform height 1,050 mm
  • Extension 24,850 mm
  • Total extended lenght 40,230 mm
