Looking for a 8-axle SL2 semi?

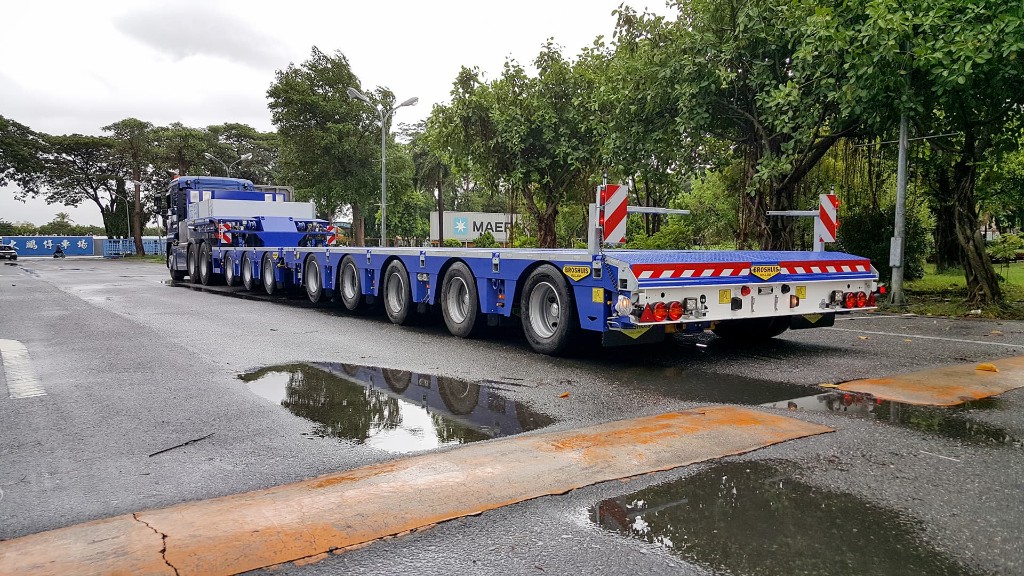

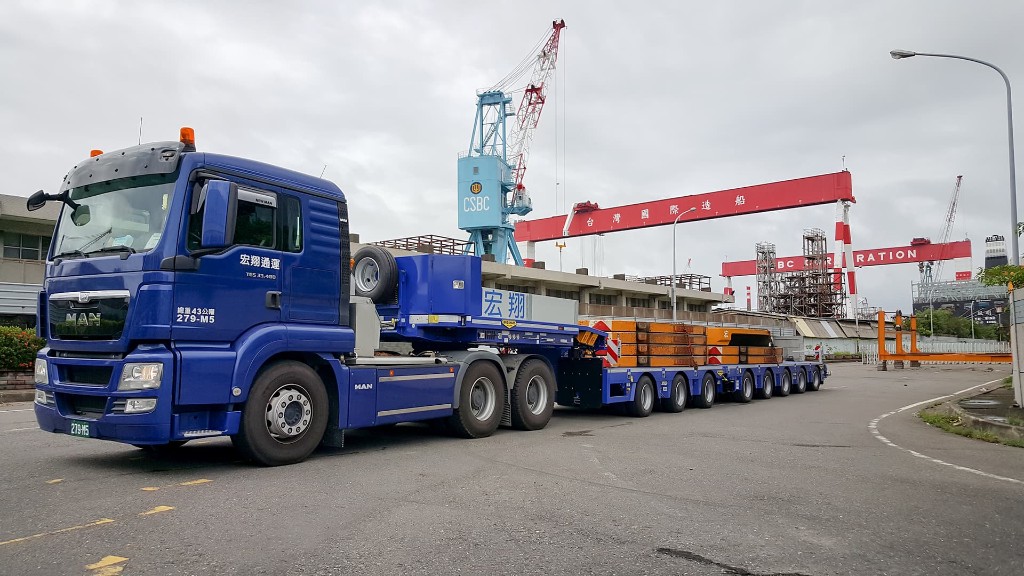

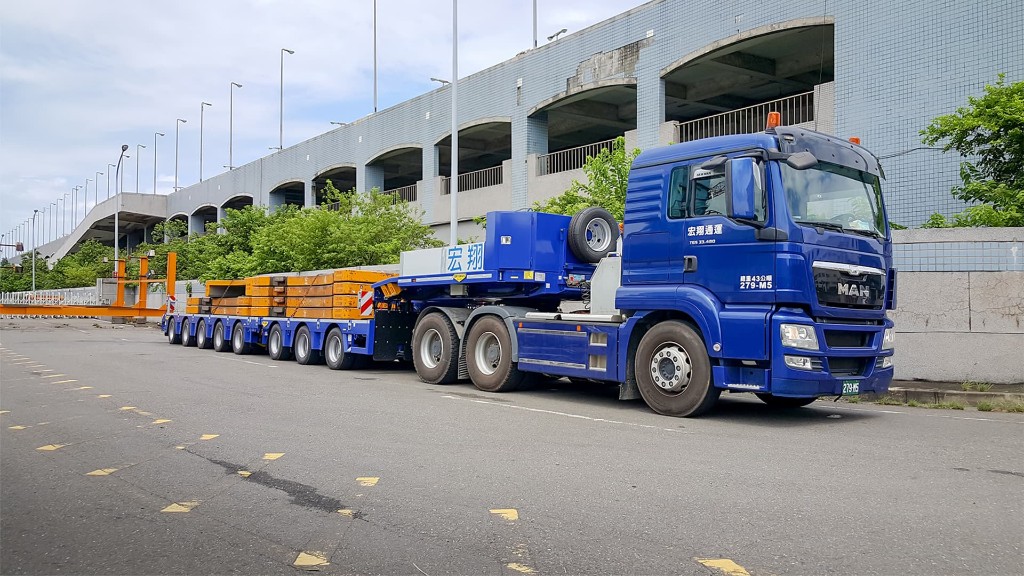

This 8-axle semi low loader with independent wheel suspension is specially-designed for heavy loads. The trailer extends once, providing increased functionality.

Ask us
your question!

Contact OptionsContact Options Questions

Determine
your target price

ConfigureConfigure Configure

8-axle semi low loader SL2

For the transportation of extremely heavy and high loads, the 8-axle semi low-loader on independent suspension is a widely-used semi trailer. This means you are choosing a proven concept in our range of 100 tonne trailers. Because the semi trailer is multifunctional, almost any load up to 100 tons can be transported with this 8-axle trailer. Thanks to our years of experience in building semi low loaders, you can be assured of the best quality. This 8-axle variant is designed as a 3 + 5 configuration, where the first two axles remain attached to the gooseneck during extension, acting as a dolly. This provides the ideal weight distribution. The dolly can even extend one times. These three axles steer with the truck, making the 8-axle semi low loader highly manoeuvrable. The trailer is single-extending, reaching a length of up to 24 meters.


General
specifications

  • 1x extendable
  • Independent suspension (SL2)
  • 245/70 R17.5 tyres
  • Movable detachable neck
  • Load capacity app. 100 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 96 t
  • Tare weight ca.28 t
  • Platform height 850 mm
  • Extension 7,855 mm
  • Total extended lenght 25,830 mm
Specification sheet

Related
products

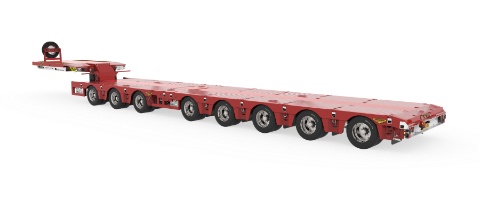

8 axle SL2 semi low loader double extender (3+5)

This 8-axle semi low loader is designed as a 3 + 5 version. This variant extends twice up to 30 meters. The SL2 axles provide you with a strong trailer, and high payload.

8-axle SL2 semi low loader (2+6)

This 8-axle SL2 semi low loader is built as a 2 + 6 version, capable of being extended 1x. The SL2 axles provide you with a strong trailer and high payload.

8-axle SL2 semi low loader double extender (2+6)

This 8-axle semi low loader is constructed as a 2 + 6 version. It can be extended twice, up to 30 meters. The SL2 axles provide you with a strong trailer and high payload.

Innovations
and techniques

SL2 Independent wheel suspension

The SL2 independent wheel suspension offers many advantages over other axle types. Low weight, lowest loading floor height (from 780 mm), extremely large steering angle and extremely stable handling.

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Technique

Our trailers are often equipped with a number of technical highlights that make the trailer unique. Thanks to these techniques, you can transport cargo with your trailer that others cannot. Here you will find an overview of our techniques that we apply to our trailers
