8-axle indepenĀ­dent
suspenĀ­sion SL2 semi low loader

8-axle single extender

Looking for a 8-axle SL2 semi?

This 8-axle semi low loader with independent suspension is specifically designed for heavy loads. The trailer has extends once, providing increased functionality.

Ask us
your question!

Contact OptionsContact Options Questions

Determine
your target price

ConfigureConfigure Configure

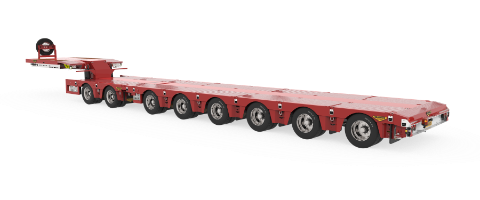

8-axle semi low loader SL2

For the transportation of extremely heavy and high loads, the 8-axle semi low loader on independent suspension is one of the most frequently-used trailers. This means that you have chosen a proven concept in our range of 100 tonne trailers. Because the semi trailer is multifunctional, almost any load up to 100 tons can be transported with this 8-axle trailer. Thanks to our many years of experience in building semi low-loaders, you can be assured of the highest quality product. This 8-axle variant is designed as a 2 + 6 configuration, where the first two axles remain attached to the gooseneck during extension, acting as a dolly. This provides the ideal weight distribution. The dolly is even extendable one times. These two axles steer with the truck, making the 8-axle semi low loader highly-manoeuvrable. The trailer is a single extender and can reach a length of up to 24 meters.


General
specifications

  • 1x extendable
  • Independent suspension (SL2)
  • 245/70 R17.5 tyres
  • Movable detachable neck
  • Load capacity app. 100 t

Technical
specifications

  • Fifth wheel load 30 t
  • Bogie load 96 t
  • Tare weight ca.27.5 t
  • Platform height 850 mm
  • Extension 9,015 mm
  • Total extended lenght 26,990 mm
Specification sheet
