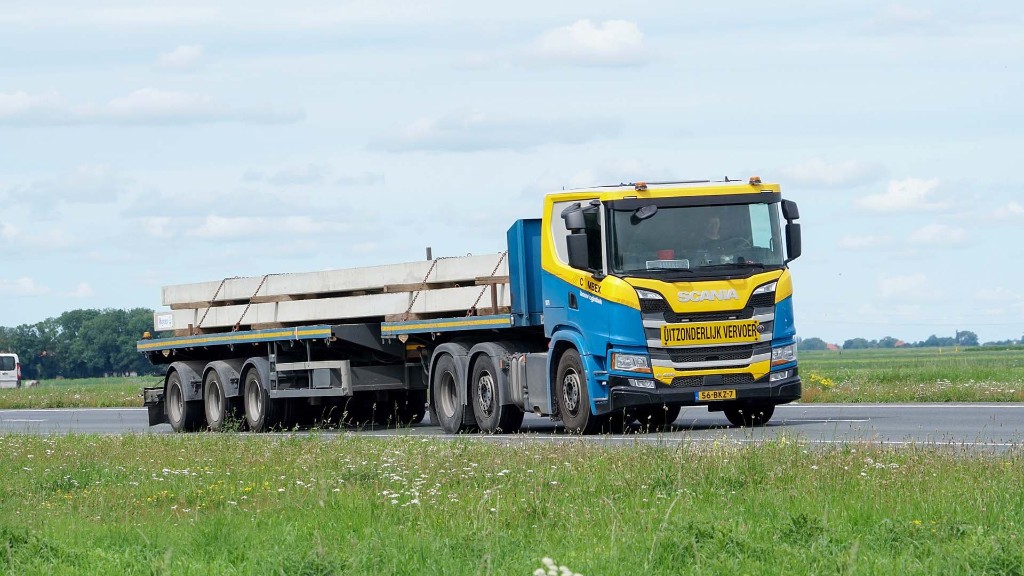

3-axle flat trailer
triple extendable (275 tires)

3x extendable to 36 meters!

Buying a new triple trailer?

This trailer can reach a length of no less than 36 meters. And is therefore often only used when really extreme lengths have to be transported.

Ask us
your question!

Determine
your target price

General
specifications

  • 3x extendable
  • Airsuspension
  • Hydraulic steered
  • Beam axle
  • 275/70 R22.5 tires
  • Load capacity app. 40 t

Technical
specifications

  • Fifth wheel load 22.5 t
  • Bogie load 30 t
  • Tare weight ca. 14 t
  • Platform height 1,450 mm
  • Extension 22,500 mm
  • Total extended lenght 36,000 mm

Specification sheet

Related
products

3-axle flat trailer triple extendable (245 tires)

Because this flat trailer can reach a length of no less than 36 meters, this flat trailer is often used when really extreme lengths have to be transported. This variant is on 245 tires, which reduces the loading floor height.

4-axle flat trailer triple extendable (275 tires)

This 4-axle flat trailer can be extended three times. Because this flat trailer can reach a length of no less than 36 meters, this flat trailer is often used when really extreme lengths have to be transported.

3-axle flat trailer double extendable (275 tires)

With the double extendable flat trailer, you still have a trailer of up to almost 30 meters in length, despite a slight increase in the tare weight. This version is on 275 tires.

3-axle flat trailer (275 tires)

The single extendable flat trailer is the ideal trailer for load lengths of up to +/- 25 meters. Thanks to the hydraulic steering, the flat trailer easily steers through the corners.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Folding cranes

The loader crane is ideal in many ways. As a haulier, you have flexibility because you can load and unload where and when you want and you are not dependent on a third party.

Conventional axle systems

We often mount conventional axles, also called through axles, on our trailers. We have these in an air-sprung version and also hydraulically-sprung.
