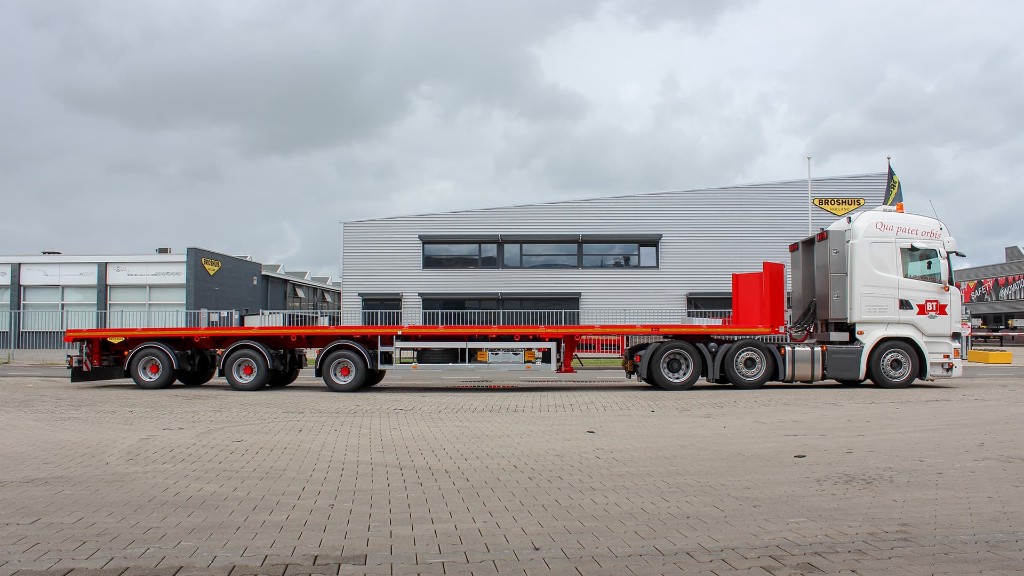

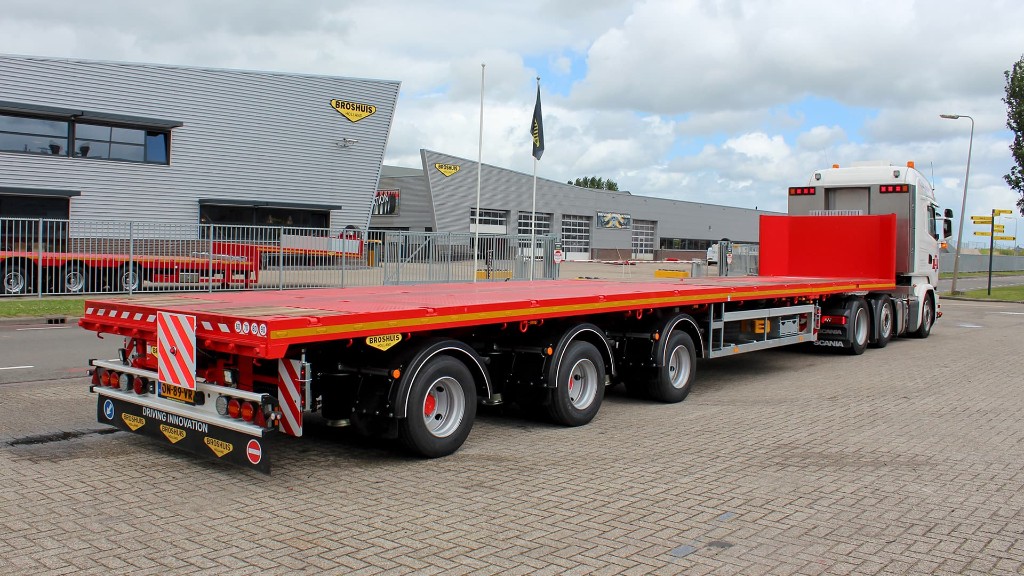

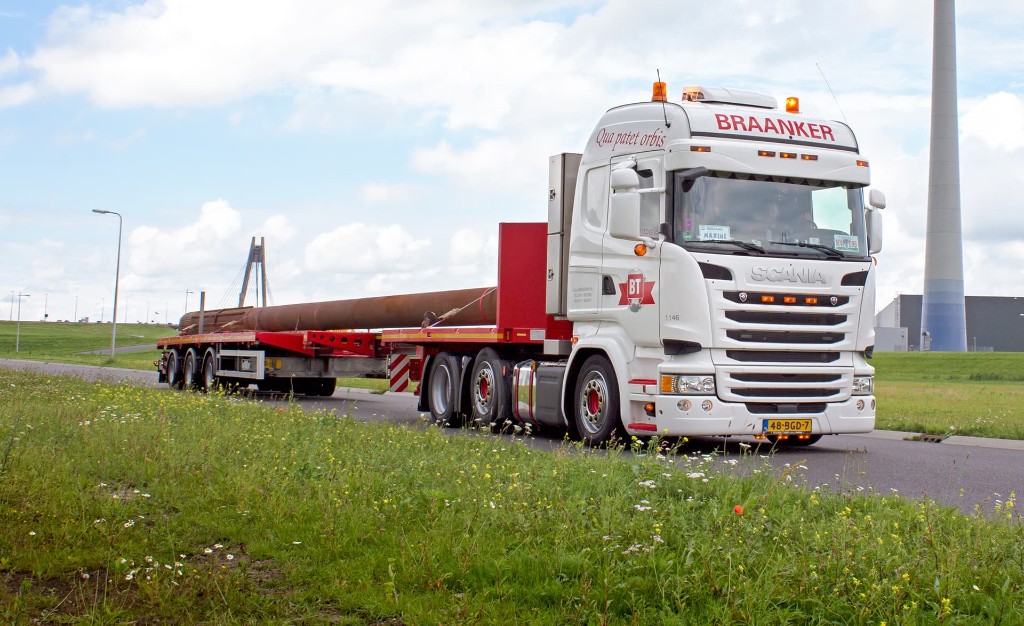

3-axle flat trailer
double extendable (245 tires)

245 tires for a lower loading floor

Buying a new flat trailer?

With a double extendable flat trailer you have a trailer of up to almost 30 meters in length, despite the slight increase in the tare weight.

Ask us
your question!

Determine
your target price

General
specifications

  • 2x extendable
  • Airsuspension
  • Hydraulic steered
  • Beam axle
  • 245/70 R17.5 tires
  • Load capacity app. 35 t

Technical
specifications

  • Fifth wheel load 18 t
  • Bogie load 30 t
  • Tare weight ca. 11.5 t
  • Platform height 1,210 mm
  • Extension 15,400 mm
  • Total extended lenght 28,900 mm

Specification sheet
