1+5-axle low loader
dolly combination PL2 HD

Greater stroke and low weight

Buying a 1+5 dolly low loader?

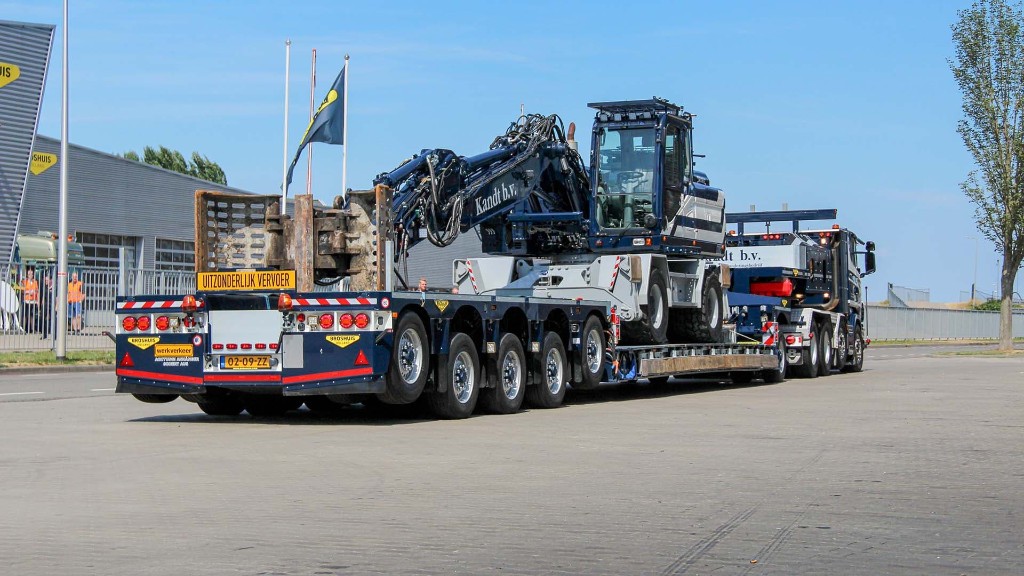

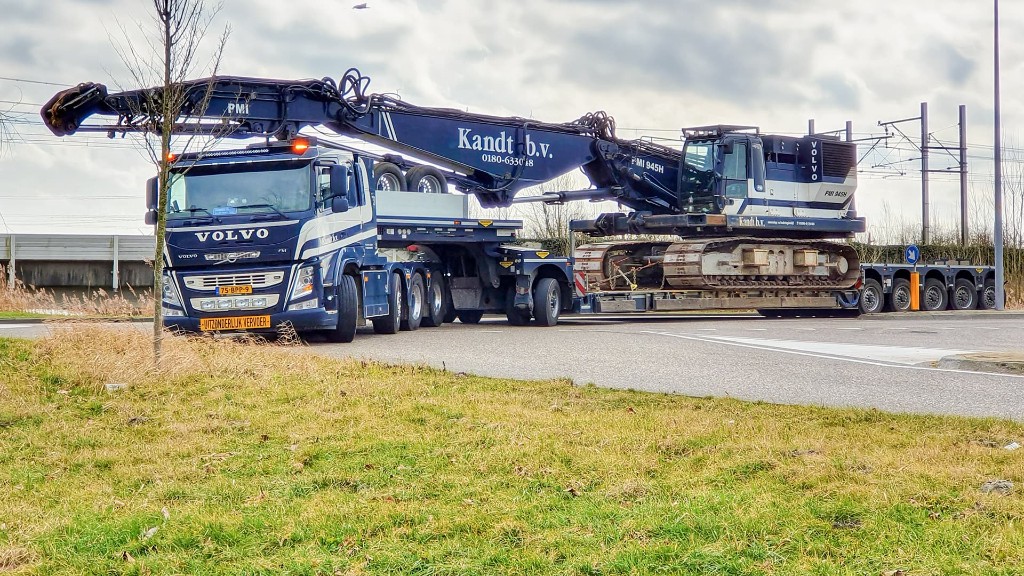

With its high axle loads and low tare weight, the 1+5 pendle axle low loader has the highest payload of its kind.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x extendable
  • Pendular axles (PL2)
  • 285/70 R19.5 tires
  • Movable detachable neck
  • Outer beams linkable
  • Load capacity app. 75 t
  • Fixed 1 axle dolly

Technical
specifications

  • Fifth wheel load 25 t
  • Bogie load 83.4 t
  • Tare weight ca.33.5 t
  • Loading height 530 mm
  • Bed lenght 8,000 mm
  • Extension 5,500 mm
  • Total extended trailer lenght 26,720 mm
Specification sheet

Related
products

2+5 PL2 HD dolly low loader

This 5-axle low loader dolly combination, with a 2-axle removable dolly, has the highest payload of its kind with a high axle load and low tare weight. A 600 mm stroke and a wide crane arm recess make this low loader unique.

1+3 PL2 HD dolly low loader

This low loader has a 3-axle bogie with a fixed 1-axle dolly at the front. Thanks to the high axle capability, in combination with a low tare weight, this low loader dolly combination has the highest payload of its kind.

1+4 PL2 HD dolly low loader

This low loader has a 4-axle bogie with a fixed 1-axle dolly at the front. The dolly ensures an ideal weight distribution of the load. The total of 5 pendle axles in combination with the low tare weight ensure a high payload.

3+5 PL2 HD dolly low loader

This 5-axle low loader dolly combination, with a 3-axle removable dolly, has the greatest payload of its kind with a high axle load and a low tare weight. 600 mm stroke and a wide and deep crane arm recess make this low loader unique.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

PL2 Pendle axles

Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.

Dollies

We have designed a number of dollies for use in combination with our low-loaders. We supply the dolly in several variants, jeep dolly, fixed or removable dolly between neck and low bed.
