3-axle self-tracking
construction semi low loader

Extremely versatile due to double wheel well

Looking for a 3-axle construction semi?

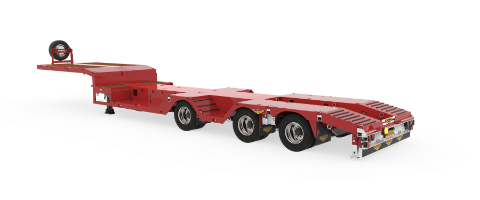

This 3-axle self-tracking construction semi low loader has double wheel wells and a crane arm recess. This makes the trailer extremely flexible in use. Because the front wheel well is extra large, vehicles with various wheelbases can be transported.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x extendable
  • Airsuspension selftracking
  • 245/70 R17.5 tyres
  • Fixed neck
  • Load capacity app. 40 t
  • Double wheel well - crane arm recess

Technical
specifications

  • Fifth wheel load 18 t
  • Bogie load 30 t
  • Tare weight ca.10 t
  • Platform height 870 mm
  • Extension 3,400 mm
  • Total extended lenght 16,750 mm
Specification sheet

Related
products

3-axle construction semi low loader

This three axle self-tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all construction machines up to 39 tons.

4-axle construction semi low loader

This 4-axle self tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all types of construction machines up to 50 tons.

4-axle construction semi low loader with ramps

This 4-axle self tracking construction semi low loader is equipped with double wheel wells, a crane arm recess and ramps. By extending the trailer, the front wheel well can be made larger. With this you can transport almost all types of construction machines.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Wheel wells

A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.

Crane arm recess

A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.
